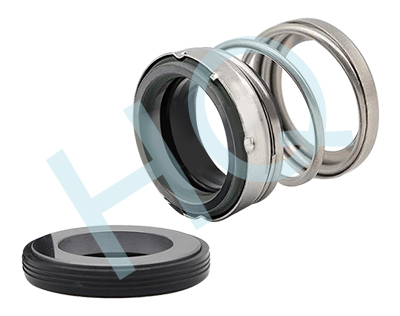

06. HQ10/HQ10T
06. HQ10/HQ10T
06. HQ10/HQ10T
- Detail
- Parameters
d (mm) | D1 | D3 | D3T | L1 | L2 |
10 | 24.6 | 23.0 | 20.5 | 43.6 | 8.7 |
12 | 27.7 | 24.0 | 22.8 | 43.6 | 8.7 |
13 | 27.7 | 24.0 | 24.0 | 43.6 | 8.7 |
14 | 30.9 | 26.7 | 24.2 | 43.6 | 10.3 |
15 | 30.9 | 26.7 | 26.7 | 43.6 | 10.3 |
16 | 30.9 | 26.7 | 26.7 | 43.6 | 10.3 |
18 | 34.1 | 31.2 | 30.4 | 43.6 | 10.3 |
19 | 34.1 | 31.2 | 30.4 | 43.6 | 10.3 |
20 | 35.7 | 33.5 | 33.4 | 43.6 | 10.3 |
22 | 37.3 | 33.5 | 33.4 | 43.6 | 10.3 |
24 | 40.5 | 39.2 | 37.7 | 43.6 | 10.3 |
25 | 40.5 | 39.3 | 39.3 | 43.6 | 10.3 |
28 | 47.6 | 46.5 | 41.9 | 60.3 | 11.9 |
30 | 50.8 | 49.5 | 43.8 | 60.3 | 11.9 |
32 | 50.8 | 49.5 | 45.8 | 60.3 | 11.9 |
33 | 53.9 | 52.7 | 45.8 | 60.3 | 11.9 |
35 | 53.9 | 52.7 | 49.3 | 60.3 | 11.9 |
38 | 57.1 | 56.0 | 52.8 | 60.3 | 11.9 |
40 | 60.3 | 62.2 | 55.8 | 60.3 | 11.9 |
42 | 63.5 | 66.0 | 58.8 | 70.6 | 11.9 |
43 | 63.5 | 66.0 | 58.8 | 70.6 | 11.9 |
44 | 63.5 | 66.0 | 58.8 | 70.6 | 11.9 |
45 | 63.5 | 66.0 | 61.0 | 70.6 | 11.9 |
48 | 66.7 | 66.7 | 64.0 | 70.6 | 11.9 |
50 | 69.8 | 71.7 | 66.0 | 70.6 | 13.5 |
53 | 73.0 | 73.5 | 71.5 | 71.0 | 13.5 |
55 | 76.2 | 78.5 | 71.5 | 71.0 | 13.5 |
58 | 79.4 | 82.0 | 79.6 | 71.0 | 13.5 |
60 | 79.4 | 82.0 | 79.6 | 71.0 | 13.5 |
63 | 82.5 | 85.0 | 81.5 | 71.0 | 13.5 |
65 | 92.1 | 88.5 | 84.6 | 71.0 | 15.9 |
70 | 95.2 | 92.7 | 90.0 | 71.0 | 15.9 |
73 | 98.4 | 95.0 | 92.0 | 73.0 | 15.9 |
75 | 101.6 | 102.0 | 96.8 | 73.0 | 15.9 |
d (mm) | D1 | D3 | D3T | L1 | L2 |
0.375 | 0.969 | 0.906 | 0.787 | 1.719 | 0.344 |
0.500 | 1.094 | 0.945 | 0.897 | 1.719 | 0.344 |
0.625 | 1.219 | 1.053 | 1.053 | 1.719 | 0.406 |
0.750 | 1.344 | 1.230 | 1.201 | 1.719 | 0.406 |
0.875 | 1.469 | 1.319 | 1.319 | 1.719 | 0.406 |
1.000 | 1.594 | 1.703 | 1.547 | 1.719 | 0.406 |
1.125 | 1.875 | 1.831 | 1.654 | 2.375 | 0.472 |
1.250 | 2.000 | 1.949 | 1.803 | 2.375 | 0.472 |
1.375 | 2.125 | 2.077 | 1.941 | 2.375 | 0.472 |
1.500 | 2.250 | 2.205 | 2.078 | 2.375 | 0.472 |
1.625 | 2.375 | 2.451 | 2.185 | 2.375 | 0.472 |
1.750 | 2.500 | 2.598 | 2.402 | 2.781 | 0.472 |
1.875 | 2.625 | 2.598 | 2.520 | 2.781 | 0.472 |
2.000 | 2.750 | 2.874 | 2.598 | 2.781 | 0.531 |
2.125 | 2.875 | 2.894 | 2.814 | 2.795 | 0.531 |
2.250 | 3.000 | 3.091 | 3.133 | 2.795 | 0.531 |
2.375 | 3.125 | 3.228 | 3.133 | 2.795 | 0.531 |
2.500 | 3.250 | 3.346 | 3.209 | 2.795 | 0.531 |
2.625 | 3.625 | 3.484 | 3.331 | 2.756 | 0.626 |
2.750 | 3.750 | 3.652 | 3.543 | 2.756 | 0.626 |
2.875 | 3.875 | 3.740 | 3.622 | 2.874 | 0.626 |
3.000 | 4.000 | 4.016 | 3.811 | 2.874 | 0.626 |
