02.HQ1A

02.HQ1A

share

02.HQ1A

Detail

Parameters

d (inch)	d (mm)	D1	D2	D3	L1	L2
0.375	9.50	24.60	11.0	22	44	8.7
0.500	12.70	27.80	13.5	25	44	8.7
0.625	15.80	30.95	17.0	29	44	10.3
0.750	19.00	34.15	20.0	32	44	10.3
0.813	20.60	35.70	21.5	33	44	10.3
0.875	22.20	37.30	23.0	35	44	10.3
1.000	25.40	40.50	26.5	38	44	10.3
1.125	28.50	47.65	29.5	46	60	11.9
1.250	31.70	50.80	32.5	49	60	11.9
1.375	34.90	54.00	36.5	52	60	11.9
1.500	38.10	57.15	39.5	56	60	11.9
1.625	41.20	60.35	42.5	59	60	11.9
1.750	44.40	63.50	46.0	62	71	11.9
1.875	47.60	66.70	49.0	65	71	11.9
2.000	50.80	69.85	52.0	68	71	13.5
2.125	53.90	73.05	55.5	71	71	13.5
2.250	57.10	76.20	58.5	75	71	13.5
2.375	60.30	79.40	61.5	78	71	13.5
2.500	63.50	82.55	65.0	81	71	13.5
2.625	66.60	92.10	68.0	86	70	15.9
2.750	69.80	95.25	71.0	89	70	15.9
2.875	73.00	98.45	74.5	92	73	15.9
3.000	76.20	101.60	77.5	95	73	15.9
3.125	79.30	111.15	80.5	102	79	19.9
3.250	82.50	114.30	84.0	105	79	19.9
3.375	85.70	117.50	87.0	108	79	19.9
3.500	88.90	120.65	90.5	111	79	19.9
3.625	92.00	123.85	93.5	114	83	19.9
3.750	95.20	127.00	96.5	117	83	19.9
3.875	98.40	130.20	100.0	121	86	19.9
4.000	101.60	133.35	103.0	124	86	19.9

d (mm)	Size code	D1	D3	L1	L2
d (mm)	Size code	D1	D3	L1	L2
12	120	27.79	25	44	8.74
14	140	30.95	29	44	10.32
16	160	30.95	29	44	10.32
18	180	34.15	32	44	10.32
19	190	34.15	32	44	10.32
20	200	35.70	33	44	10.32
22	220	37.30	35	44	10.32
24	240	40.50	38	44	10.32
25	250	40.50	38	44	10.32
27	270	47.63	46	60	11.99
28	280	47.63	46	60	11.99
29	290	47.63	46	60	11.99
30	300	50.80	49	60	11.99
32	320	50.80	49	60	11.99
33	330	53.98	52	60	11.99
34	340	53.98	52	60	11.99
35	350	53.98	52	60	11.99
38	380	57.15	56	60	11.99
40	400	60.35	59	60	11.99
42	420	63.50	62	71	11.99
43	430	63.50	62	71	11.99
45	450	63.50	62	71	11.99
48	480	66.70	65	71	11.99
50	500	69.85	68	71	13.50
53	530	73.05	71	71	13.50
54	540	73.05	71	71	13.50
55	550	76.20	75	71	13.50
60	600	79.40	78	71	13.50
63	630	82.55	81	71	13.50
65	650	92.10	86	70	15.90
70	700	95.25	89	70	15.90
73	730	98.45	92	73	15.90
75	750	101.65	95	73	15.90
80	800	114.30	105	79	20.00
90	900	123.85	114	83	20.00
95	950	127.00	118	83	20.00
100	1000	133.35	124	86	20.00

Type

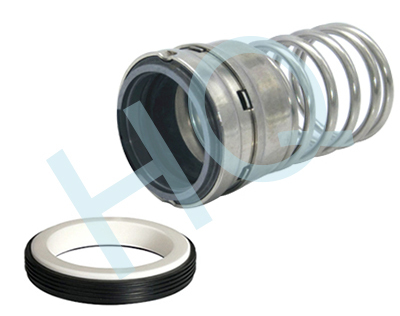

Elastomeric bellow mechanical seal

Replacement

Crane 1A(European Standard), Vulcan A1.

Temperature

-30℃ to +200℃

Pressure

≤2.8Mpa

Speed

≤13m/s

Material

V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
