  • Detail
  • Parameters


HQ2



d

(Inch)

d

(mm)

D1
D2
D3
L1
L2
0.500
12
25.40
19.05
30.14
20.64
7.93
　
14
31.75
23.80
33.32
22.23
10.28
0.625
16
31.75
23.80
33.32
22.23
10.28
0.750
18
34.93
26.98
36.50
22.23
10.28
　
20
38.10
30.15
39.67
23.80
10.28
0.875
22
38.10
30.15
39.67
23.80
10.28
　
24
41.28
33.32
45.50
25.40
11.10
1.000
25
41.28
33.32
45.50
25.40
11.10
1.125
28
44.44
36.50
48.50
26.97
11.10
　
30
47.63
37.90
52.37
26.97
11.10
1.250
32
47.63
37.90
52.37
26.97
11.10
　
33
50.80
42.84
56.00
28.58
11.00
1.375
35
50.80
42.84
56.00
28.58
11.00
1.500
38
53.98
46.05
59.2
28.58
11.00
1.625
40
60.38
50.80
67.00
34.93
12.70
　
43
63.50
53.97
69.85
34.93
12.70
1.750
45
63.50
53.97
69.85
34.93
12.70
1.875
48
66.68
57.15
73.03
38.10
12.70
　
48
69.85
60.32
73.03
38.10
12.70
2.000
50
69.85
60.32
76.20
38.10
12.70
2.125
53
76.20
60.32
82.55
42.85
14.28
2.250
55
79.38
61.9
85.73
42.85
14.28
2.375
60
82.55
67.39
88.90
46.02
14.28
2.500
63
85.73
68.25
92.08
46.02
14.28
2.625
65
85.73
71.24
98.43
49.20
15.90
2.750
70
88.90
74.60
101.60
49.20
15.90
2.875
73
95.25
77.77
104.78
52.37
15.90
3.000
75
98.43
80.95
107.95
52.37
15.90



HQ2B




d

d0

D3

D4

L1

L3

(Inch)

Min Bore

1.000

0.875

1.812

2.000

1.312

0.343

1.125

1.000

1.937

2.125

1.375

0.343

1.250

1.125

2.062

2.250

1.375

0.343

1.375

1.250

2.250

2.437

1.437

0.343

1.500

1.375

3.375

2.562

1.437

0.343

1.625

1.500

2.718

2.937

1.750

0.437

1.750

1.625

2.750

3.062

1.750

0.437

1.875

1.750

2.875

3.187

1.875

0.437

2.000

1.875

3.000

3.312

1.875

0.437

2.125

2.000

3.250

3.625

2.062

0.500

2.250

2.125

3.375

3.750

2.062

0.500

2.375

2.250

3.500

3.875

2.187

0.500

2.500

2.375

3.625

4.000

2.187

0.500

2.625

2.500

3.875

4.312

2.312

0.562

2.750

2.625

4.000

4.437

2.312

0.562

2.875

2.750

4.125

4.562

2.437

0.562

3.000

2.875

4.250

4.687

2.437

0.562

3.125

2.875

4.562

5.000

2.562

0.625

3.250

3.000

4.687

5.125

2.562

0.625

3.375

3.125

4.812

5.250

2.562

0.625

3.500

3.250

4.937

5.500

2.562

0.625

3.625

3.375

5.125

5.687

2.687

0.625

3.750

3.500

5.250

5.812

2.687

0.625

3.875

3.625

5.437

6.000

2.812

0.625

4.000

3.750

5.562

6.125

2.812

0.625







Type

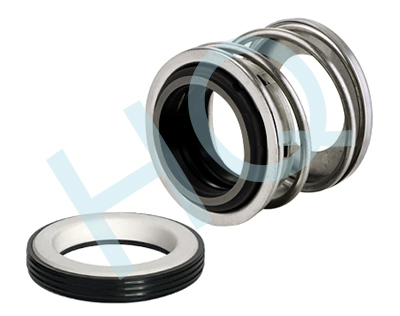

Elastomeric bellow mechanical seal
Replacement
Crane 2(US)/2B, AES P04U，Vu1can A4，Flowserve 52
Temperature
-30℃ to +200℃
Pressure
≤2.8Mpa
Speed
≤13m/s
Material
V,Q1,Q2,U2,U1,B,A,P,E,V,F,G
